23cm

Old info below, I am QRT on 23cm EME at least for now.



Scroll to the bottom for some recordings/jpgs of sigs.

I am QRV on CW and JT, I prefer CW.

5m dish. 0,47 F/D. VE4MA feed. 200-250W from PE1RKI PA module.

QRV på både CW och JT, men får jag välja så kör jag helst CW. 5m parabol och ca 200W från en PE1RKI PA modul.

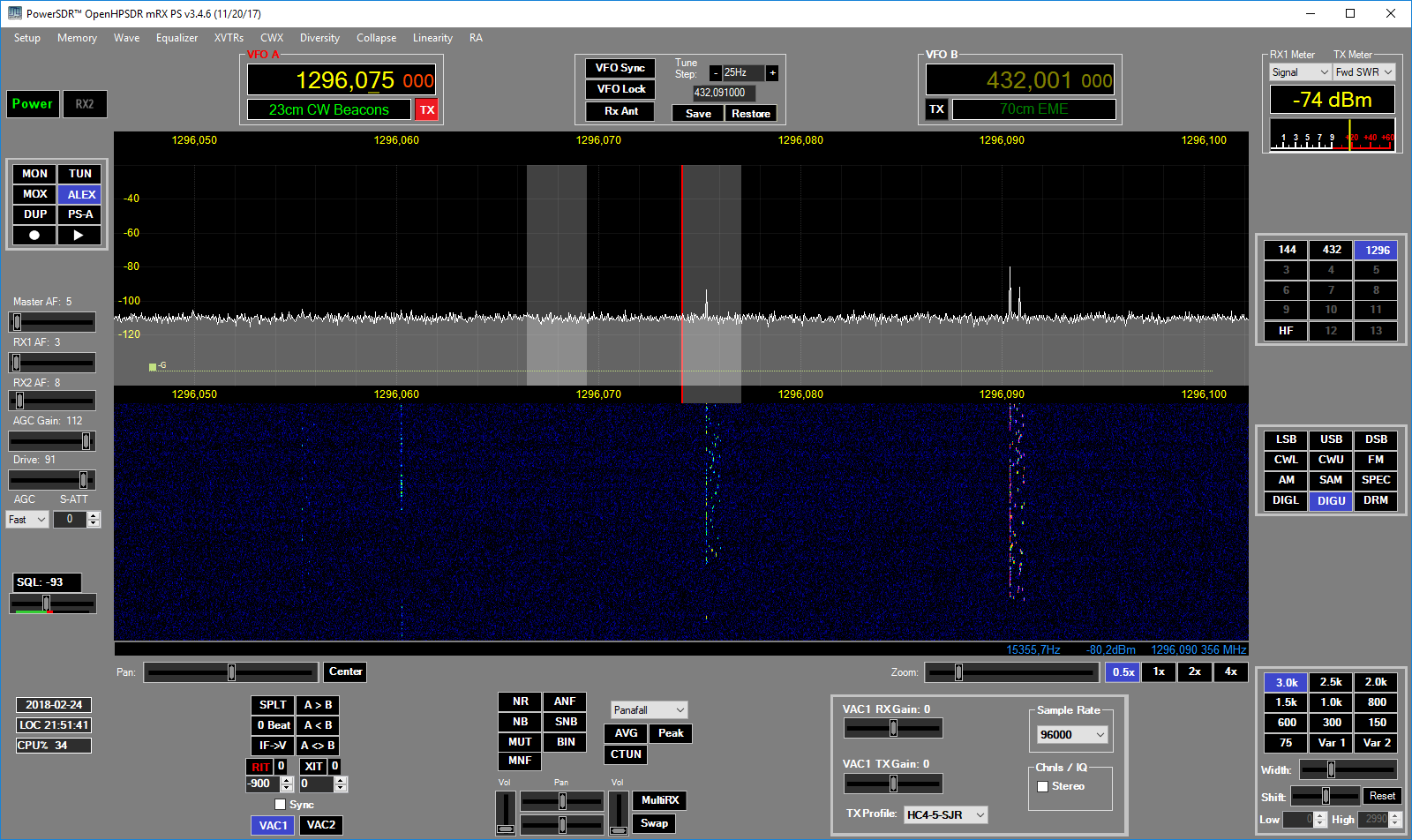

A typical day on 23cm, click on image to enhance.



20150419_JO87FB_0201



JO87FB-2012_2012-12-01_3207



JO87FB-2012_2012-11-28_23_a

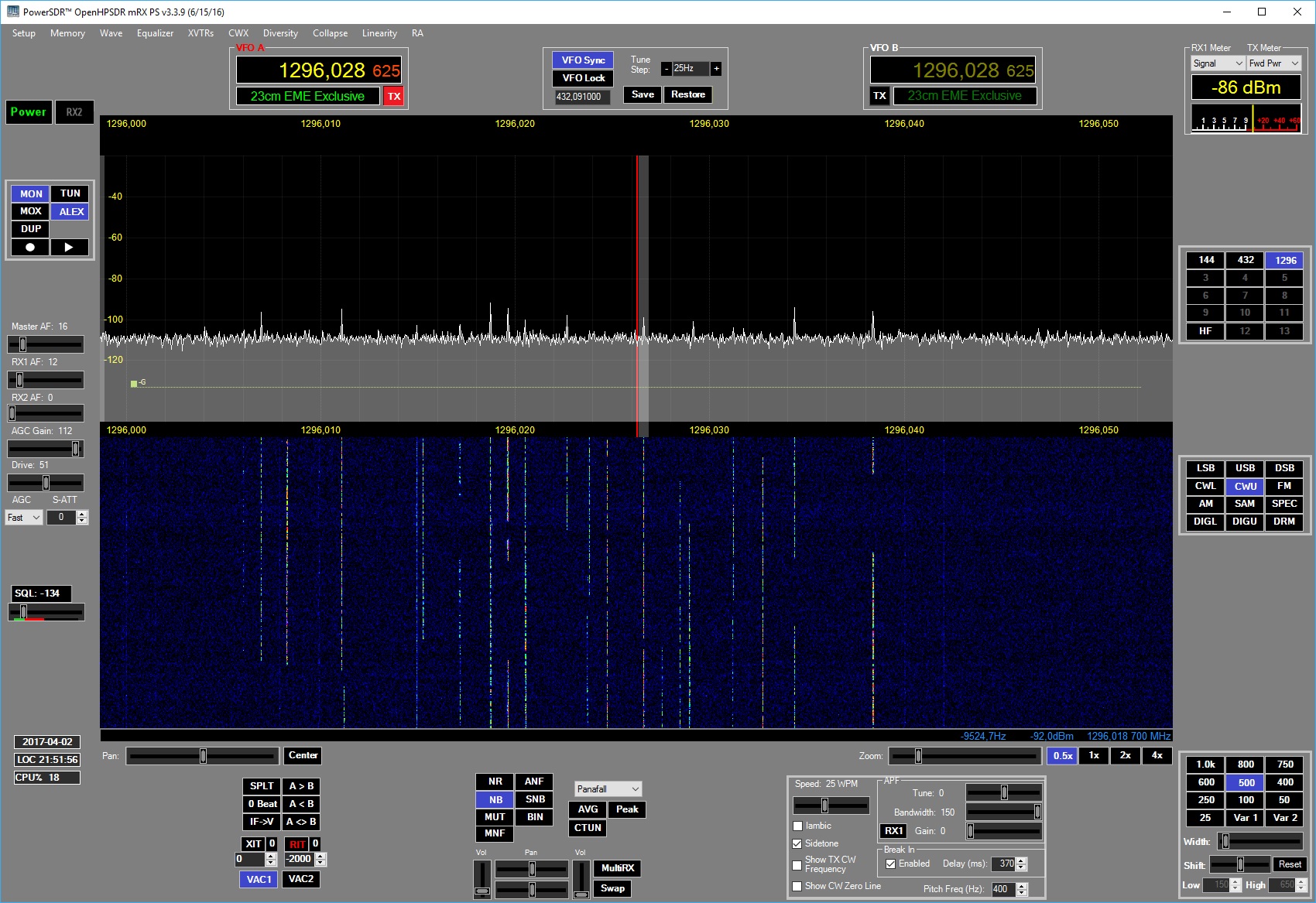

EME  operation in the 23cm CW EME Dubus contest. 2017-April-02. Click on image to enlarge.












EME operation, at 2016-nov-20, click on image to enlarge. Lots of CW stns, the 2 strongest is I1NDP and G4CCH. Higher up in freq there is also JT stns.

eme_23cm_2016-nov-20











Listen to some sigs from the moon. Here is I1NDP calling CQ on 23cm (I moved in freq during the CQ). Recieved with ANAN-200DE, Kuhne transverter and 1k filters.

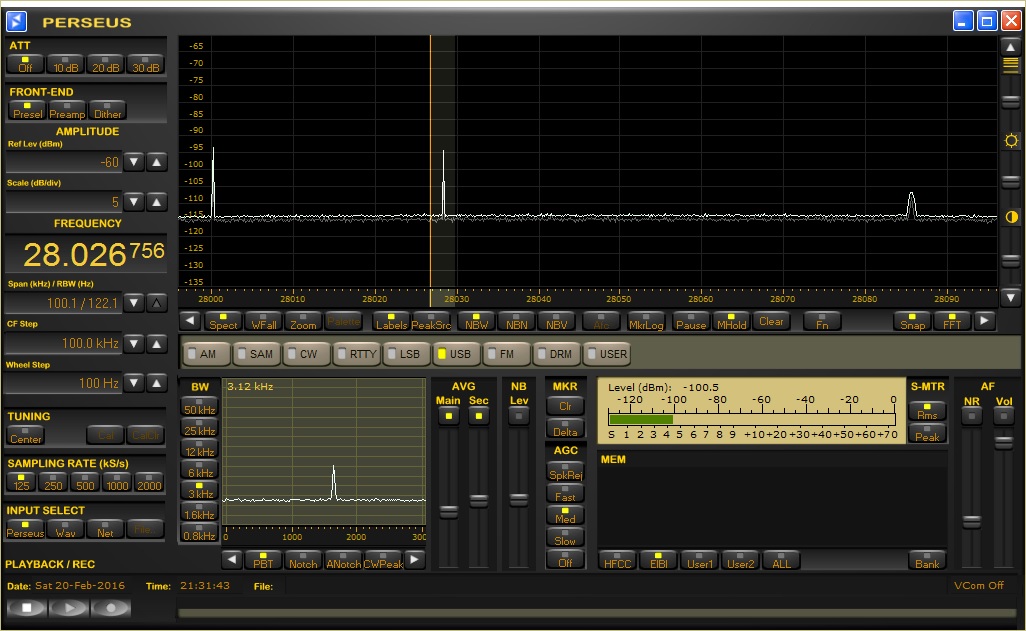

I also got a jpeg from I1NDP with my sigs in there, click to enlarge.
sm7sjr I1NDP EME

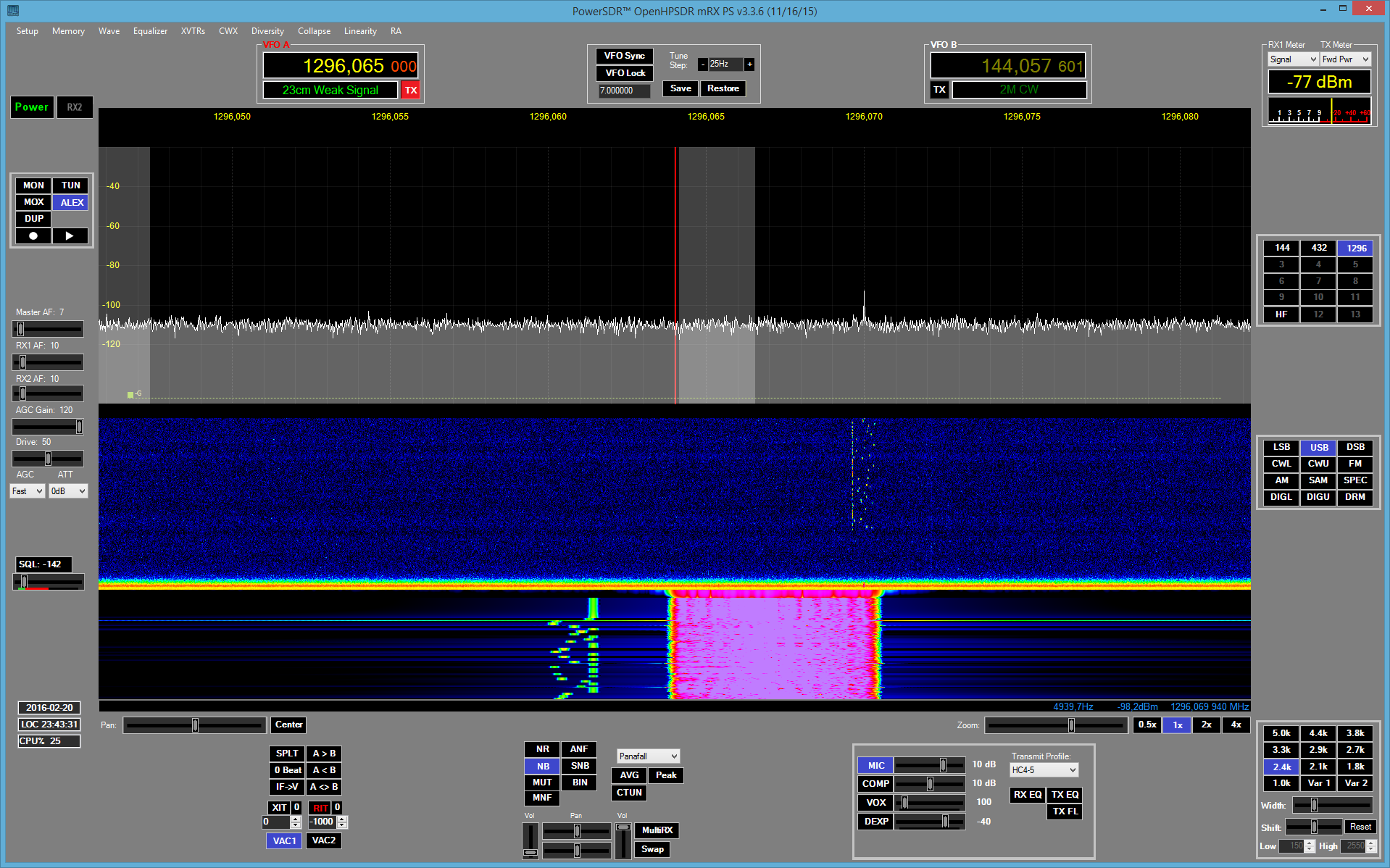

Another JPG, I am on 1296.065, seeing NC1I on 070.

NC1I on 23cm EME
